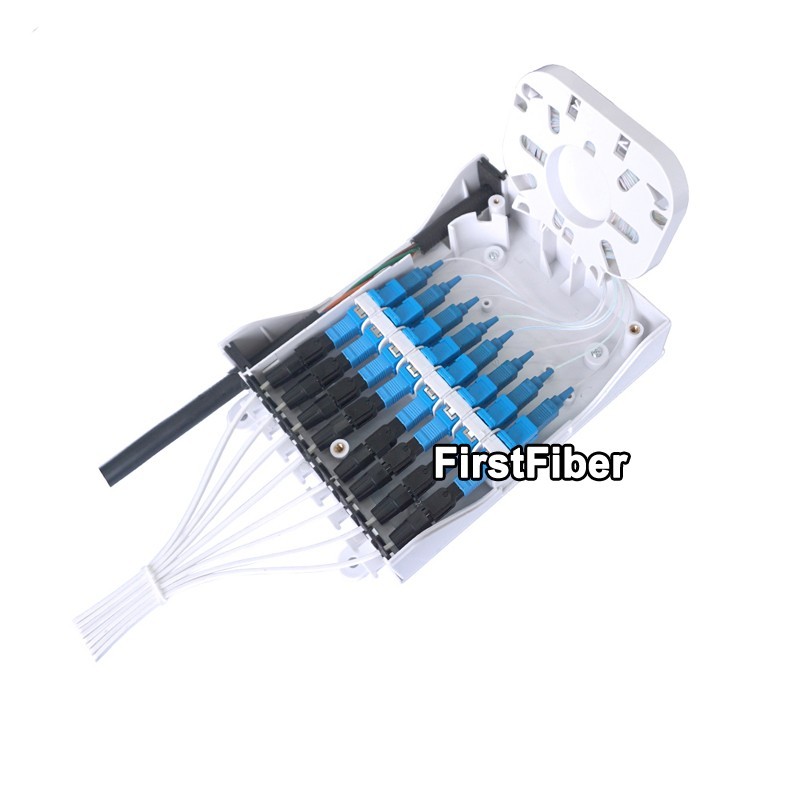

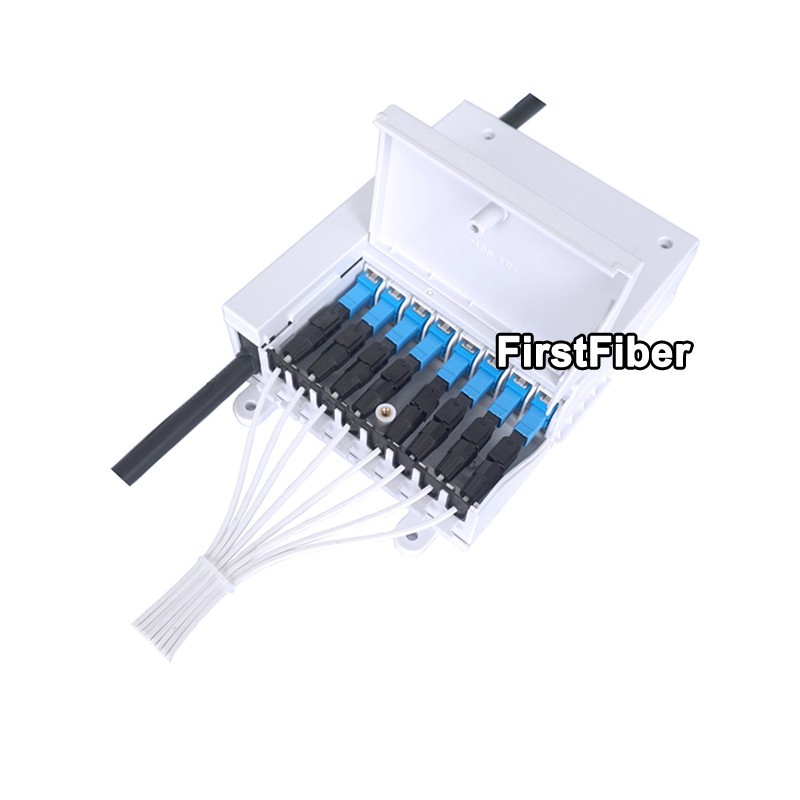

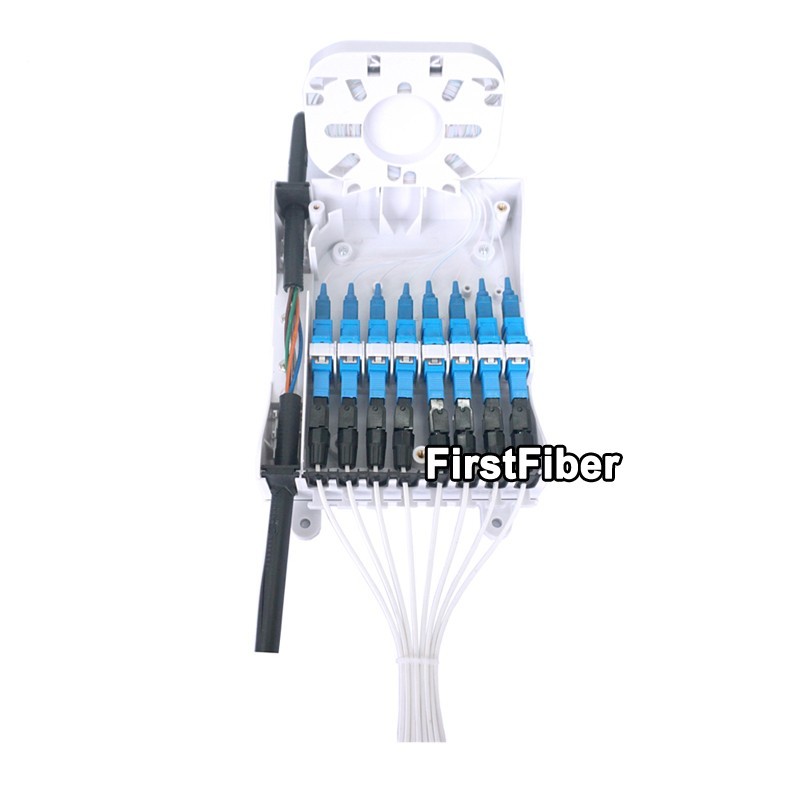

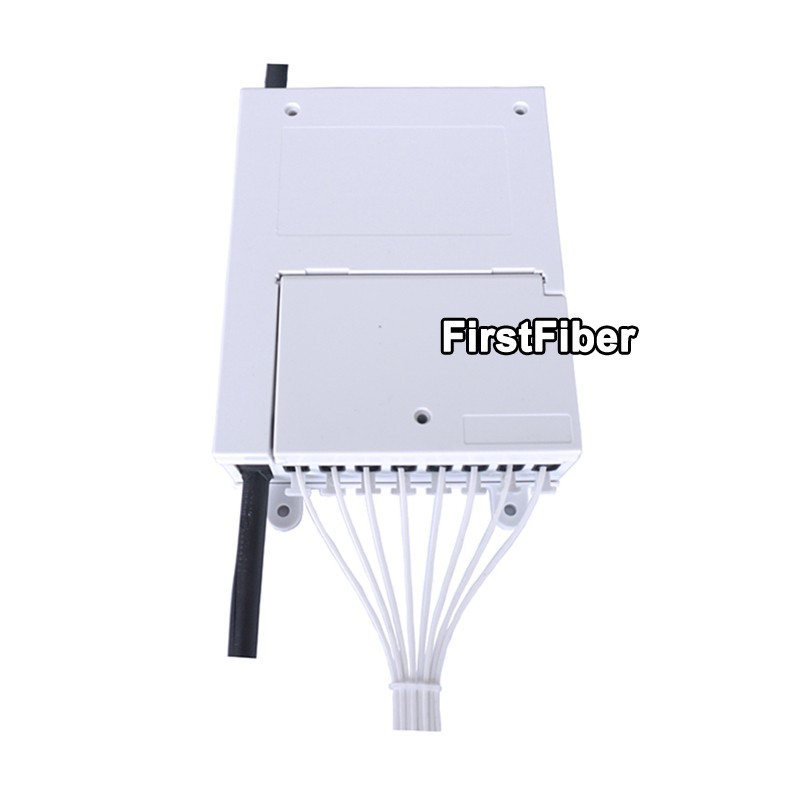

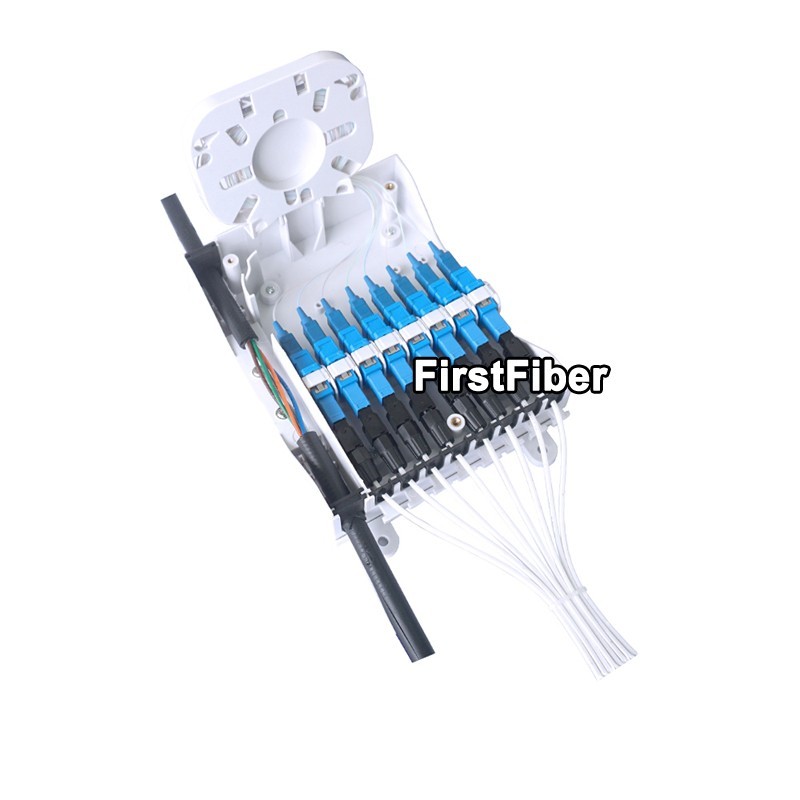

The equipment is used as a termination point for the feeder cable to connect with drop cables or pigtails in FTTH communication network system. The fiber splicing, splitting and distribution can be done in this box, and in meanwhile, it provides solid protection and management for the FTTH network building.
- Widely used in FTTH access network.
Telecommunication Networks
CAMax.Capacity(bunchy)TV Networks
Data communications Networks
- Local Area Networks
|
Product No.
|
FF-FTB8G
|
|
Dimension(LxWxH)
|
192 * 135 * 48mm
|
|
Cable entries
|
Inlet port: 2 ports |
|
Installation Dimension
|
178*88MM
|
|
Material
|
ABS FR
|
|
PLC splitter
|
1*4,1*8,1*12 ,1*16 Mini Steel Tube/ bare type PLC splitter
|
|
No. of Adapter
|
Max. 8pcs SC SX
8pcs LC DX Adapter |
|
Weight
|
0.25kg
|
|
IP rating
|
IP65
|
