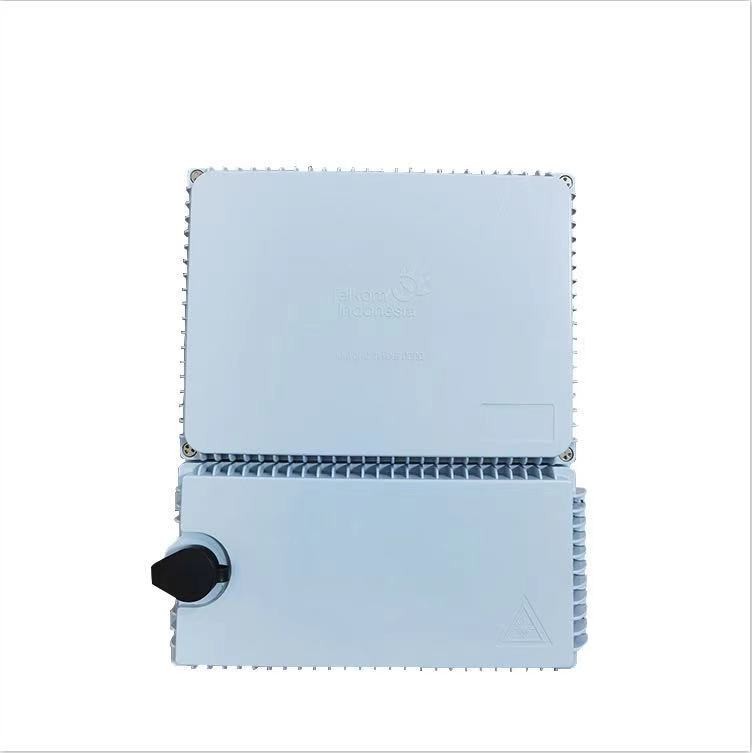

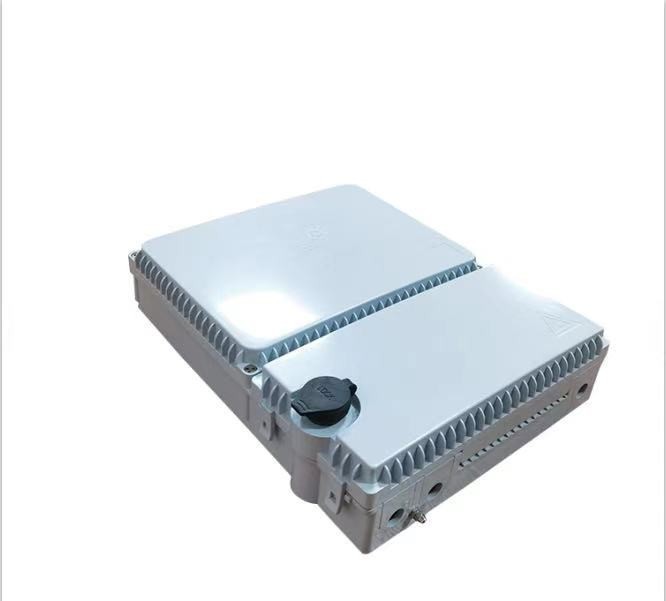

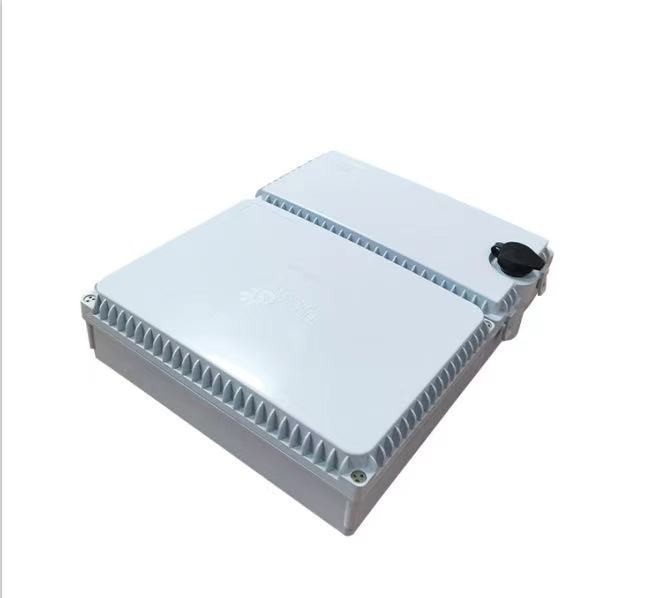

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1) Absolutely sealed up, IP55
2) PC & ABS material for wet-proof, water-proof, dust-proof, anti-aging
3) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
4) Feeder cable, pigtails, patch cords go through their own path without disturbing each other

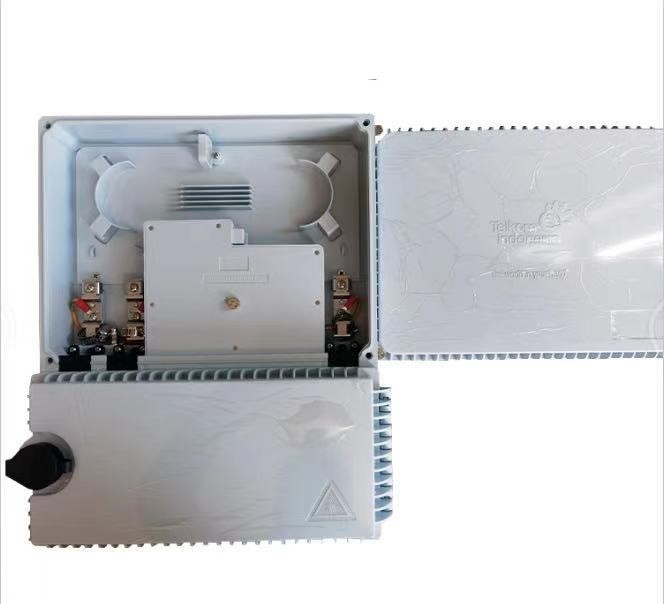

5) Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation

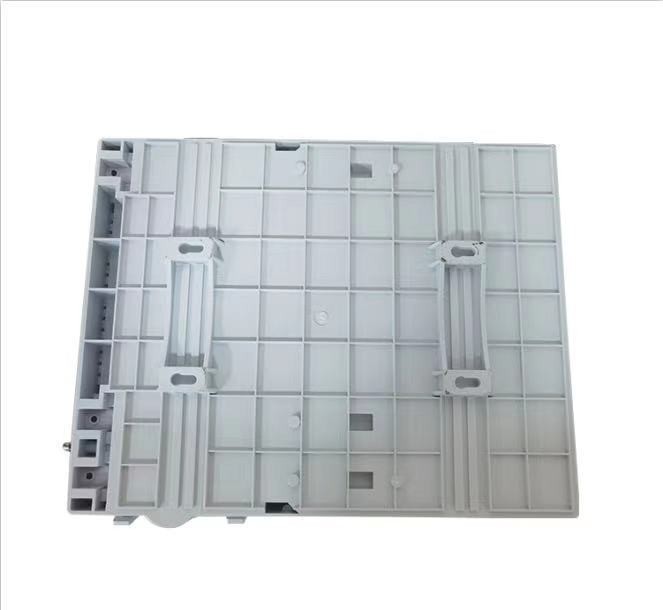

6) Can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor
|
Model |
Description |
Size |
Max Capacity |
Size |
Cable ways |
||
|
A*B*C(mm) |
SC |
LC |
PLC |
D*E (mm) |
|||
|
FF-FTB16R |
Distribution Box |
343*281*90 |
16 |
32 |
16(SC) |
89.5*187 |
Not cup-joint / cup-joint |
