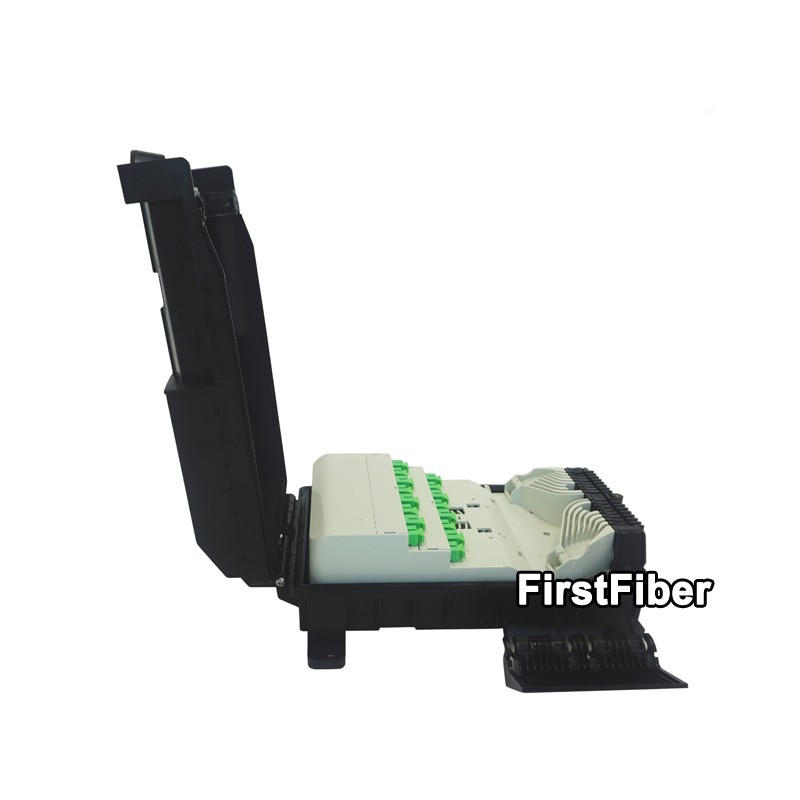

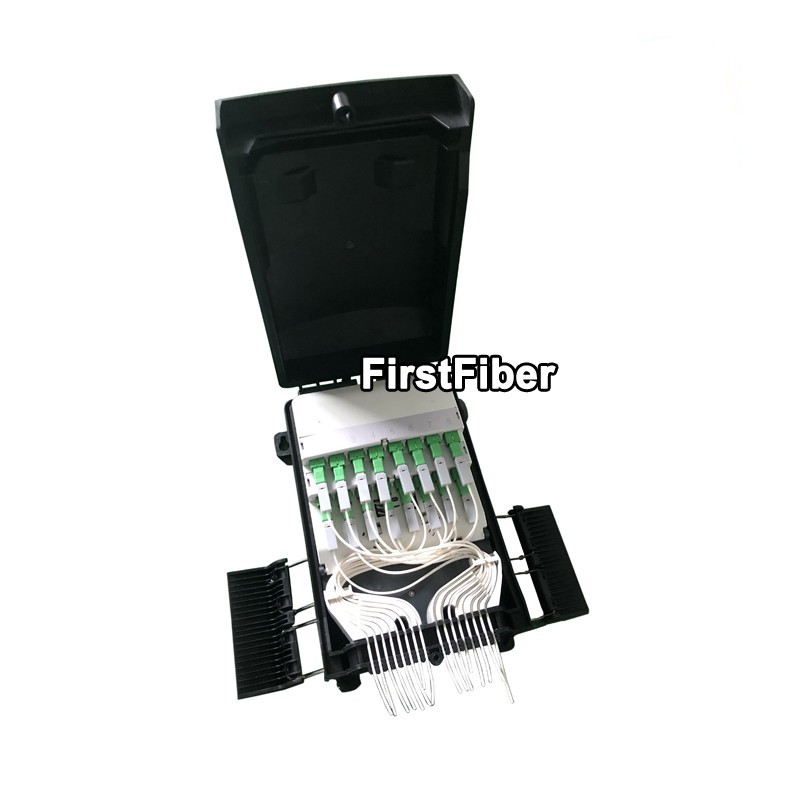

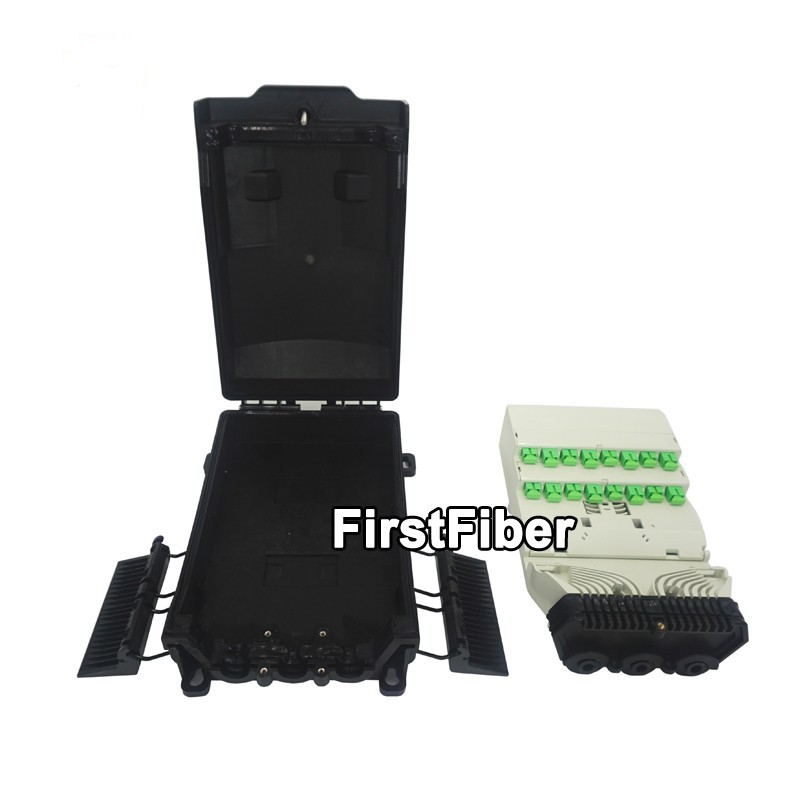

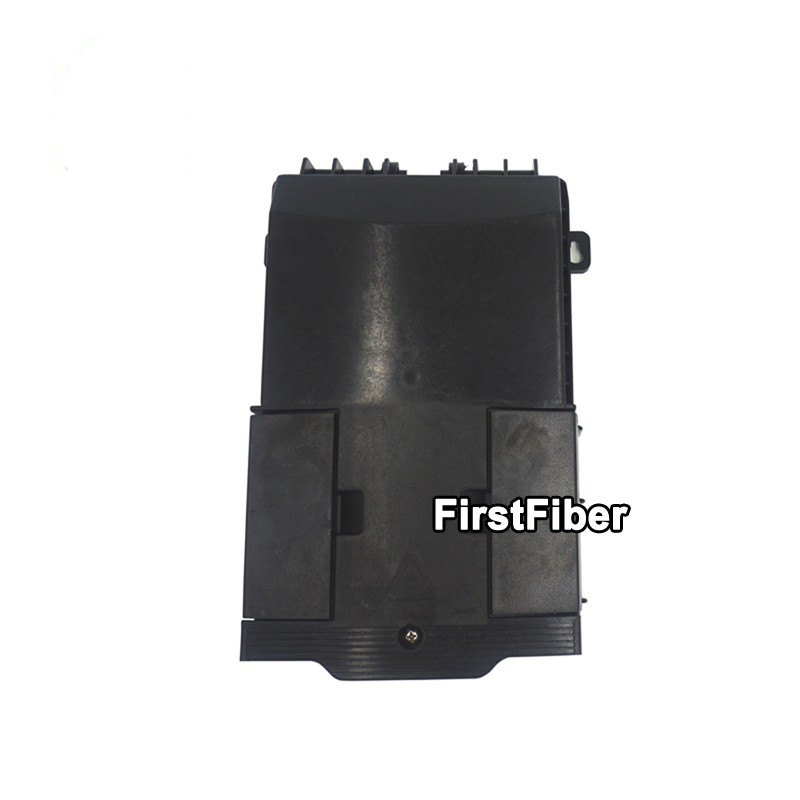

FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal has 3 main cable ports and 16 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The closure accommodates up to 12 fusion splices (or 4 mechanical splices), two PLC splitters and 16 SC adapters. Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.
Features:
Standards:
Specification:
| Max. Capacity | 16 fibers |
| Max. Inlet Cable Diameter | 20mm |
| Inlet Cable Number | 3pcs |
| Drop Cable Diameter | 2×3m drop cable |
| Outlet Cable Number | 16pcs |
| Protection Grade | IP68 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 300(H)*210(W)*105(D)mm |
| Working Temperature | -40°C~+65°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~85% (+30°C) |
| Air Pressure | 70~106KPa |
|

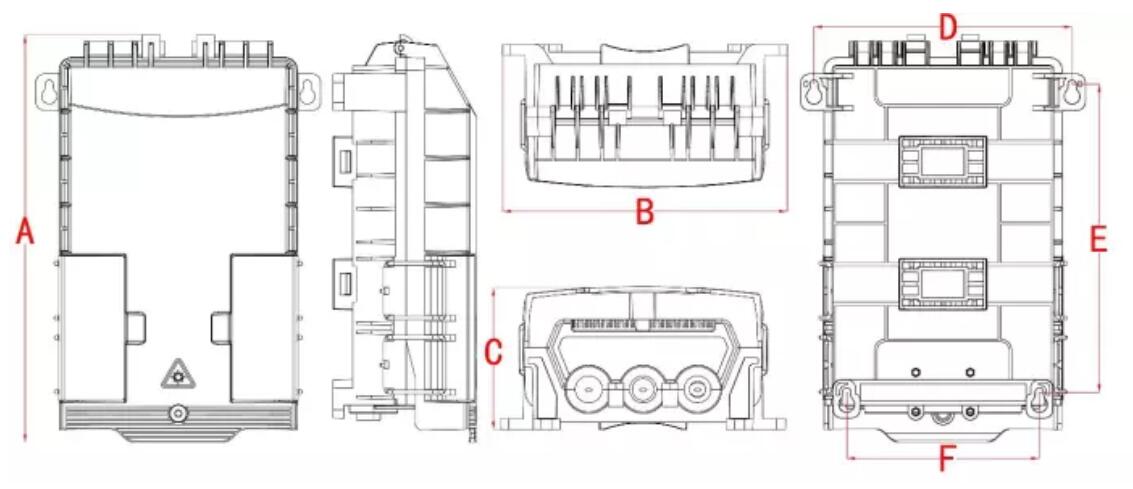

Model
|
Size
A*B*C (mm) |
Max Capacity
|
Derrick installation size
D*E*F(mm) |
largest cable diameter(mm)
|
|
FF-FTB16Q
|
300*210*105
|
16
|
190*227*142
|
20mm
|

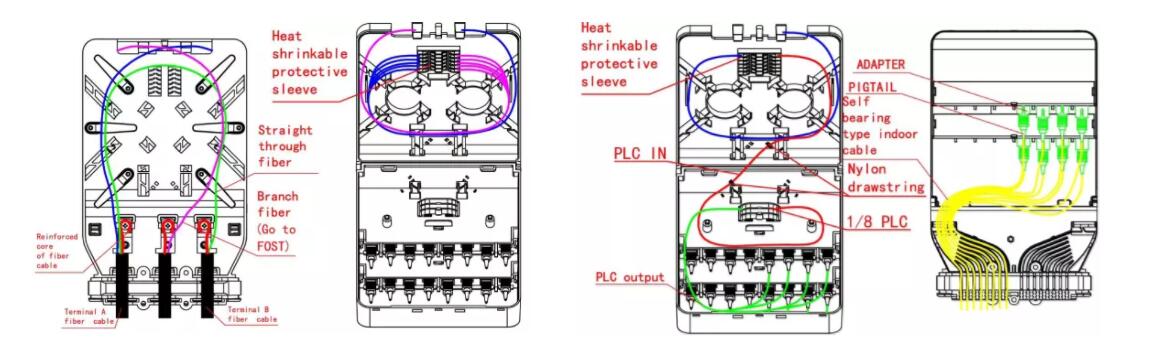

Cabling Routing

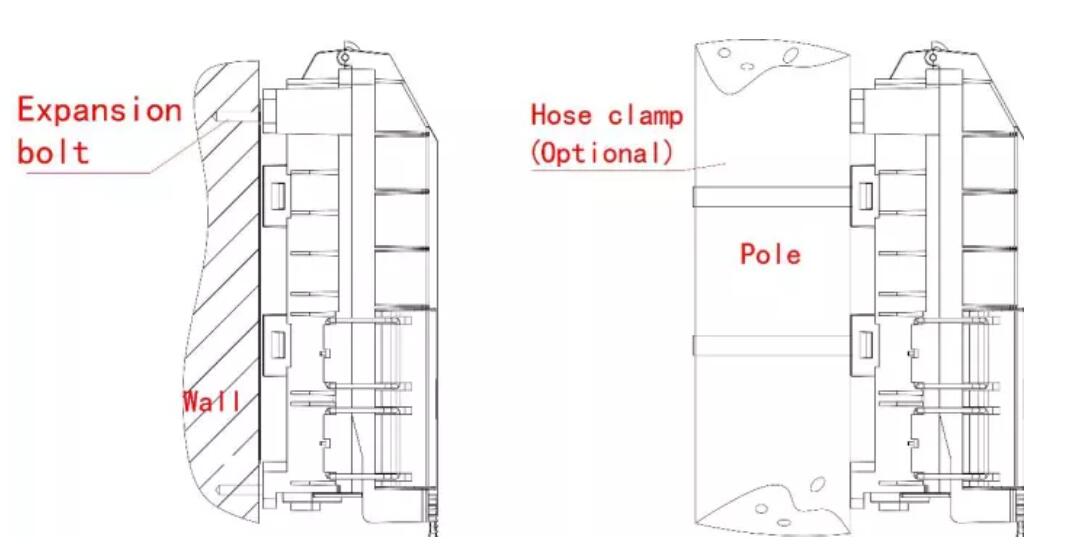

Wall installation & Pole Installation
