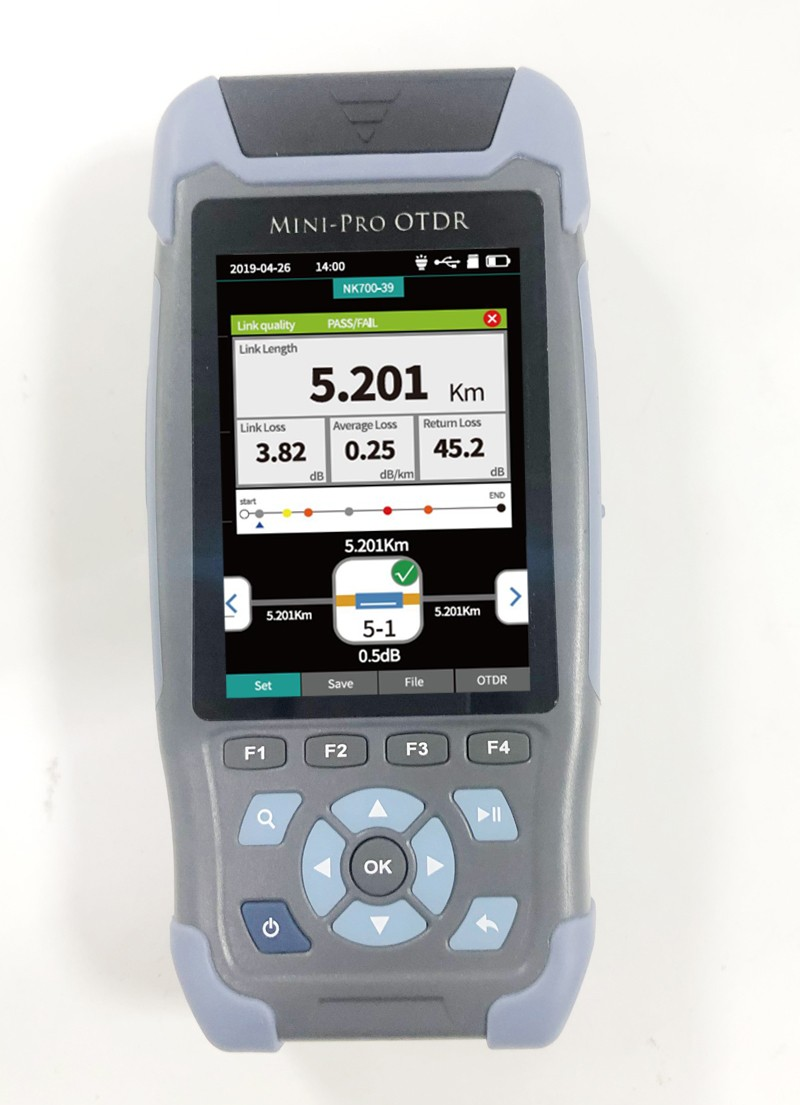

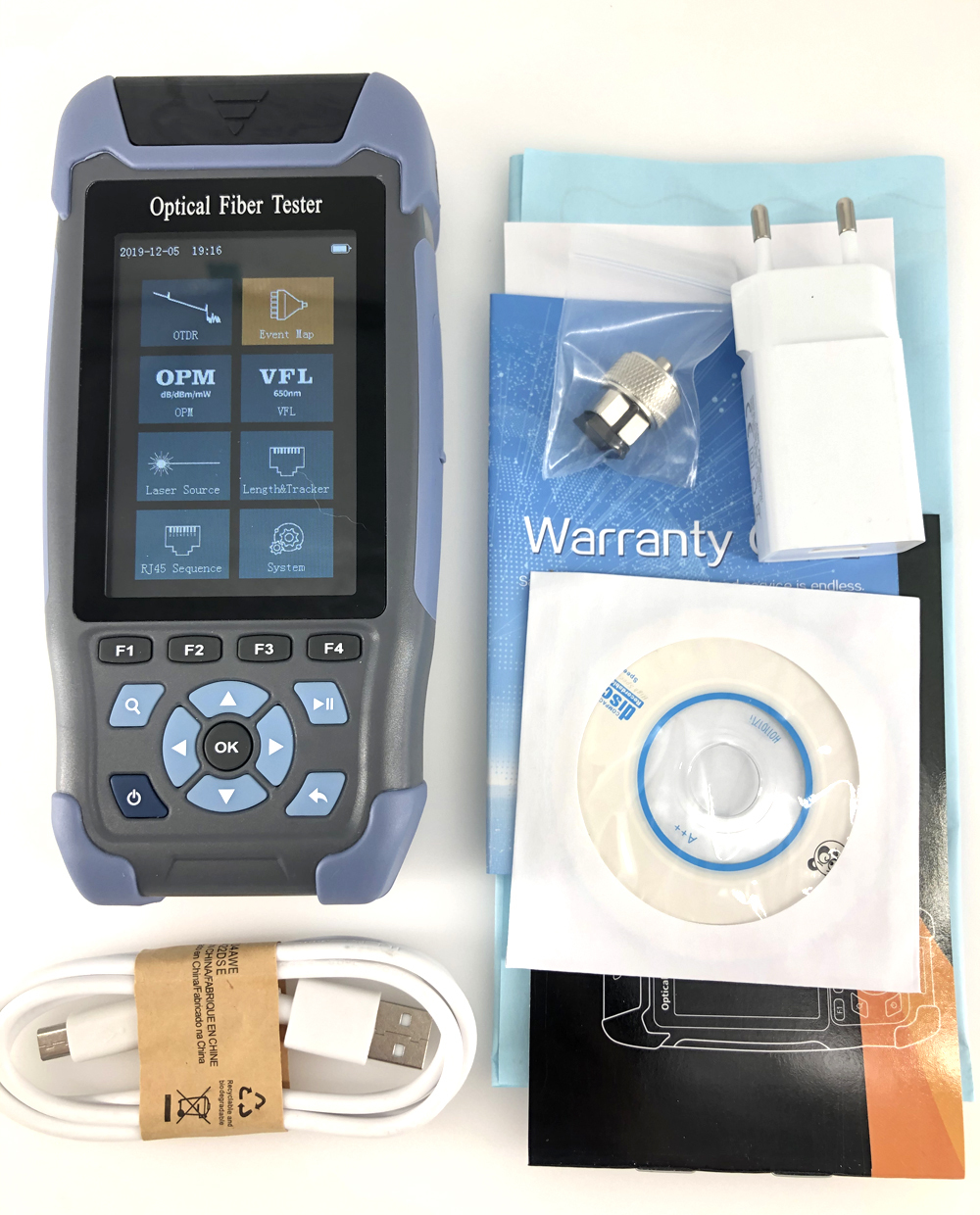

mini pro OTDR
Model: FF-980REV
Wavelength: 1310 and 1550nm
Dynamic Range: 24/22dB
Testing Range: 3m to 64km

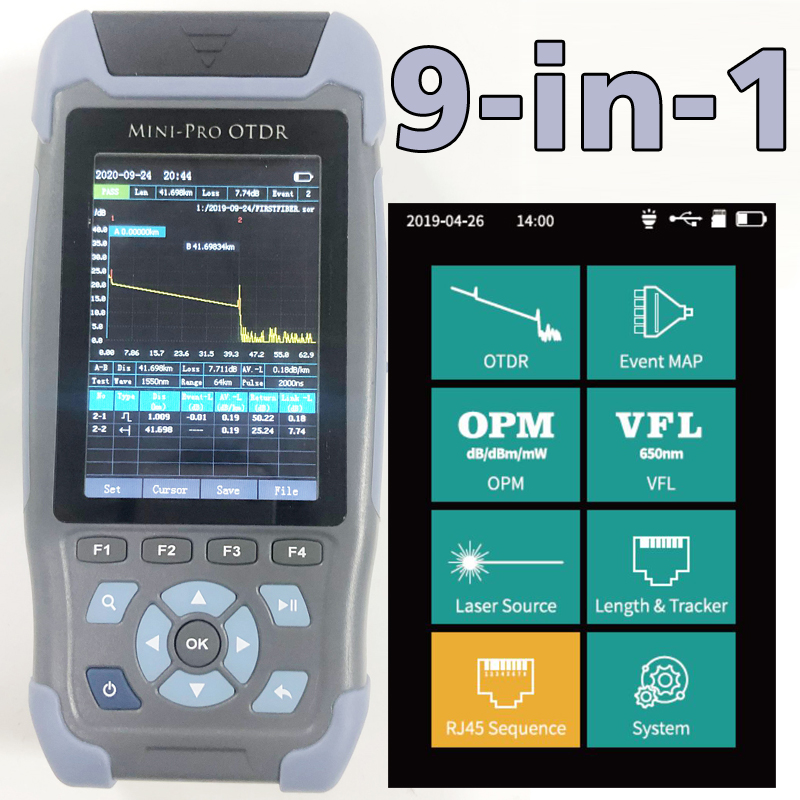

9 Functions in 1 Device
1) OTDR
2) EVENT MAP
3) Optical Light Source
4) Optical Power Meter
5) Visual Fault Locator
6) RJ45 Ethernet Cable Sequence
7) Ethernet Cable Distance
8) Ethernet Cable Tracker
9) LED Ligh
Specifications
| General | |
| Size | 173x82x37mm |
| Weight | 350g (Battery included) |
| Display | 3.5 Inch Colorful Screen |
| Interface | USB, TF Card Port, Rj45 Port, OTDR port, VFL port, Power Meter Port, Charging Port |
| Power Supply | Input: 100V(ac) to 240V(ac), 50~60Hz, 0.6A; Output: 5V(DC), 2A 4000mAh/3.7V Lithium battery (with air traffic certification) |
| Working Time | >12 hours (Continuous measurement); Standby>20 hours |
| Power Saving | Intelligent power management Auto power off: Never/1min/5min/10min/30min/60min |
| Data Storage | Internal Flash Memory: >600 curves; TF Card: >230,000 curves (8G/32G/64G) |
| Language | Chinese/English/Russian/Portugal/Vietnamese/French/Spanish (Optional) |
| Protection | Rubber for Shockproof |
| Environmental Conditions |
Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation) Storage temperature and humidity: -40℃~+70℃, ≤95% (non-condensation) Altitude: 0~5000m above sea level Compatible and stable operation: in all climate conditions in Asia, Europe, America, Africa and Australia |

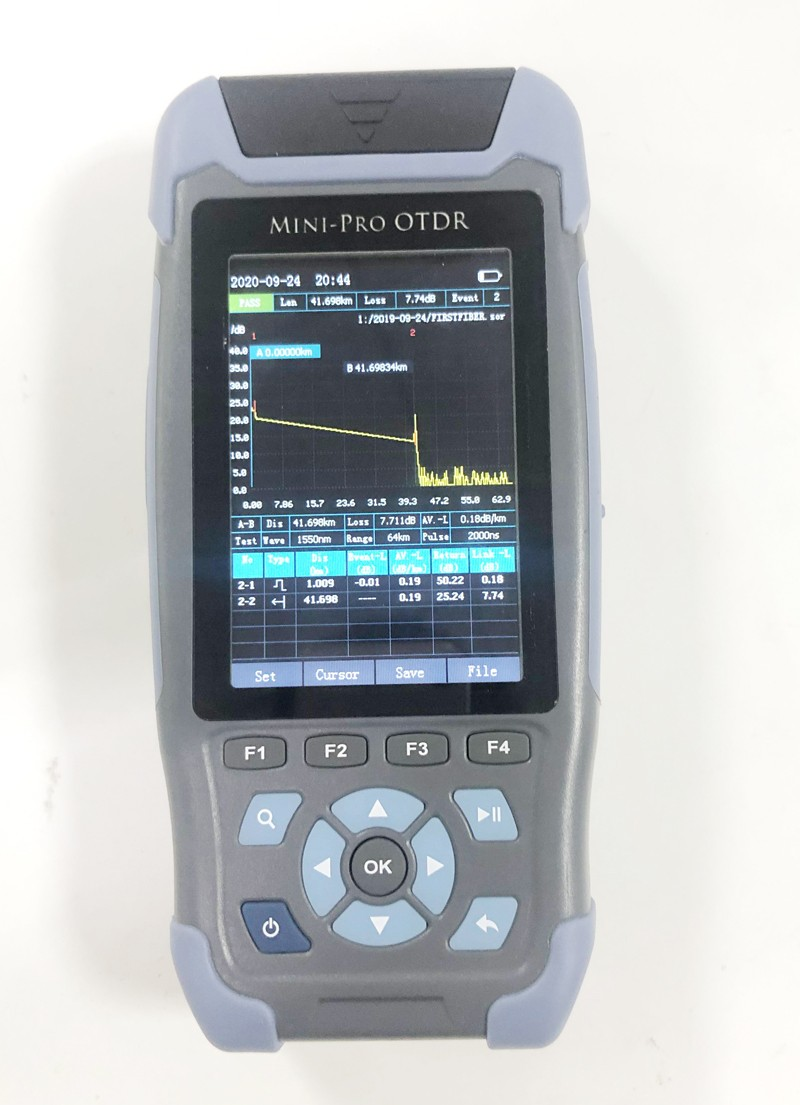

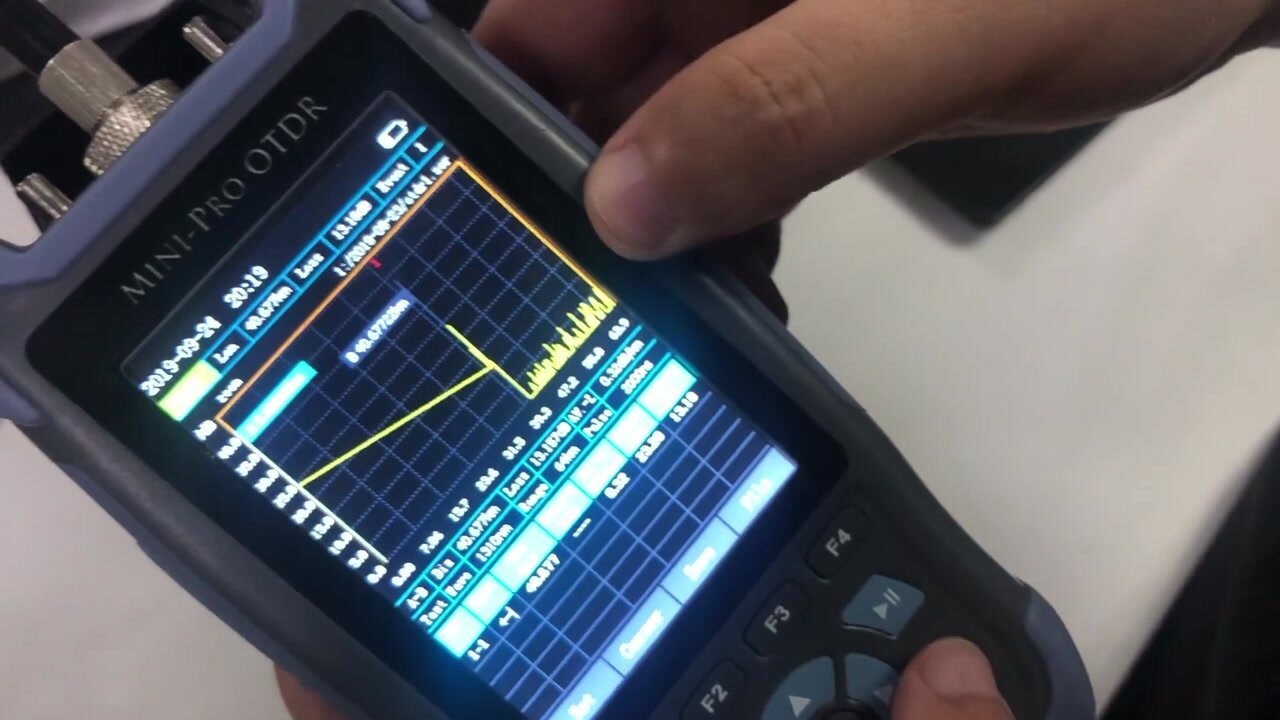

| OTDR Module | |
| Wavelength | 1310/1550nm |
| Dynamic Range | 24/22dB (Display Range 0 to 40dB) |
| Pulse Width | 3ns,5ns,10ns,20ns,30ns,50ns,80ns,160ns,320ns,500ns,800ns,1μs,2μs,5μs,10μs |
| Distance Range | 500m,1km, 2km, 4km, 8km, 16km, 32km, 64km |
| Dead Zone | Event dead zone: 3 meters, Attenuation dead zone: 8 meters |
| Sampling Resolution | Min 0.05m, Max 8m |
| Sampling Point | Min 16,000 Max 128,000 points |
| Linearity | ≤0.2dB/dB |
| Averaging Time | Setting by user |
| Reflectance Accuracy | ≤±3dB |
| Distance Accuracy | ±(1m+measuring distance×3×10^-5+sampling resolution) ( excluding IOR uncertainty) |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| IOR Setting | 1.0~2.0, 0.0001 step |
| Units | km, kft, mi |
| OTDR Trace Format | sor |
| Live Signal Warning | Support |
| Cursor | Supports 2 cursors to measure values between two points |
| OPM Module | |
| Wavelength | 850/980/1300/1310/1490/1550/162/1650nm |
| Test Range | -70~+ 10dBm or -50~+ 26dBm |
| Accuracy | ±0.35dB±1nW |
| Uncertainty | ±5% |
| Modulation | CW/270/330/1k/2k Hz |
| Reference | Support |
| OLS Module | |
| Laser Type | FP-LD |
| Wavelength | 1310/1550nm |
| Output Power | > -5dBm |
| Output Mode | CW/270/330/1k/2k Hz |
| Stable | ±0.5dB/15min (CW mode) |
| VFL Module | |
| Wavelength | 650nm |
| Output Power | 10mw, CLASSIII B |
| Range | 10km |
| Mode | CW/1Hz/2Hz |

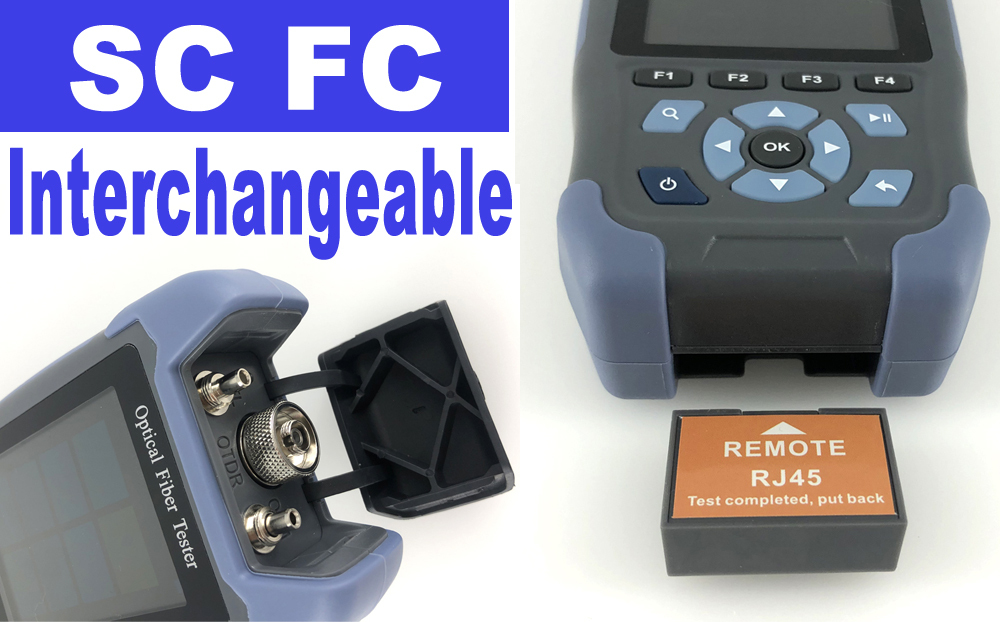

| Adapter Type | 2.5mm Universal Adapter for FC SC ST Connectors |
| RJ45 Cable Tracker | |
| Testing Range | 300 meters |
| Signal Type | Analog signal/Digital Signal |
| Active Cable Track | Support |
| Signal Receiver | Sent as a default Accessories |
| Warning Sound | Yes |
| RJ45 Cable Type | Support both 568A and 568B |
| RJ45 Cable Sequeence | |
| Testing Range | 300 meters |
| Signal Type | Analog signal/Digital Signal |
| Active Cable Test | Not Support |
| Remote Unit | Can be took out from bottom of the device |
| RJ45 Cable Type | Support both 568A and 568B |
| Testing Time | Less than 15s |
| RJ45 Cable Length | |
| Testing Range | 300 meters |
| Signal Type | Analog signal/Digital Signal |
| Active Cable Test | Not Support |
| Testing Time | Less than 15s |
| Unit | m/km/ft |
