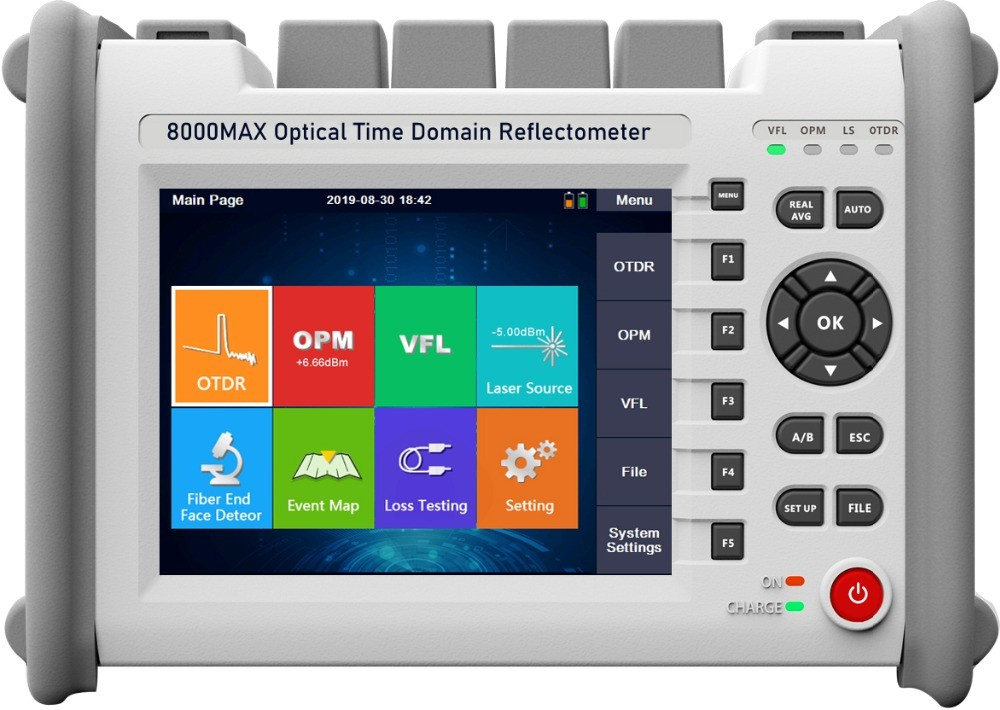

8000MAX High Accurate OTDR
OPTIMIZED FOR FTTx/MDU FIBER DEPLOYMENTS
AND TROUBLESHOOTING, SUITABLE FOR METRO

The 8000MAX series is handy, lightweight and rugged enough for any outside plant environment. With a 5.6-inch, outdoor-enhanced touchscreen–the most efficient handheld display in the industry–it delivers an unprecedented user experience. Its intuitive concise GUI ensures a fast learning curve. Plus, its new and improved environment offers icon-based functions, instant boot-up, as well as improved auto and real-time modes.
The 8000MAX series is a line of genuine high-performance OTDRs from the world’s leading manufacturer. It delivers FirstFiber's tried and true OTDR quality and accuracy along with the best optical performance for right-firsttime results, every time. The amazing 8-hour battery life will never let a technician down, and the plug-and-play hardware options like fiber inspection probe and USB tools, make every technician’s job easier.
Most importantly, the 8000MAX series is finally bringing the Event Map, an intelligent OTDR-based application, to the handheld market. This advanced software turns even the most complex trace analysis into a simple, one-touch task.

Popular Models:

Model#	Testing Wavelength	Dynamic Range	Event/ Attenuation Dead Zone
8000MAX-S1	1310/1550nm	32/30dB	0.8/4
8000MAX-S2	1310/1550nm	35/33dB	0.8/4m
8000MAX-T2	1310/1550/1625nm	35/33/32dB	0.8/4m
8000MAX-T3	1310/1550/1650nm	35/33/32dB	0.8/4m
8000MAX-M1	850/1300nm	20/26dB	1.2/5m
8000MAX-Q1	1310/1550/850/1300nm	28/26/20/26dB	0.8/4m, 1.2m/5m
8000MAX-10G1	1310/1550/1270/1577/1625nm	37/35/35/35/35dB	0.8/4m, 1.2m/5m
8000MAX-10G2	1310/1550/1270/1577/1650nm	37/35/35/35/35dB	0.8/4m, 1.2m/5m
8000MAX-10G3	1310/1550/1577nm	35/33/33dB	0.8/4m

Note: please download catalogue to see all optional models. We also can customize OTDR for you per your request.

Model 8000MAX-10G is for GPON, XGPON, XGSPON fiber network test.

BUY ONE, GET ALL
- OTDR (Auto)
- OTDR (Manual | Average)
- OTDR (Real Time)
- Event Map
- Optical Power Meter (OPM)

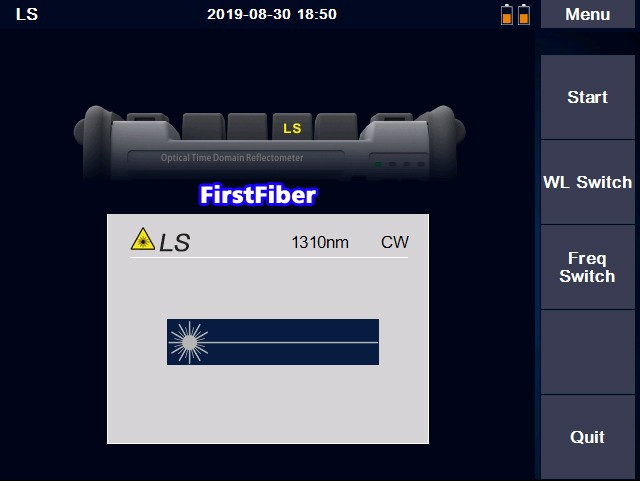

- Optical Light Source (OLS)
- Loss Testing

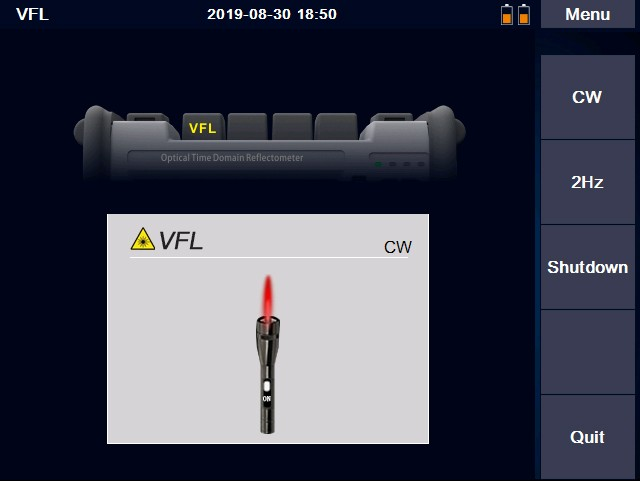

- Visual Fault Locator (VFL)
- Fiber End Face Detector

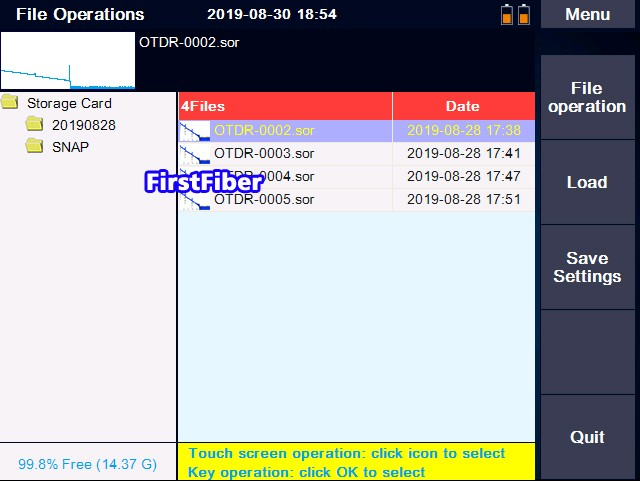

- Result Format Sor & PDF

New Features
- Launch Cable & Receive Cable Applicable, and Deduction Allowed from Trace
- Two Wavelengths to Process Testing Tasks Simultaneously
- Service Light Detecting and Start Protection

The Menu Language
- English
- Spanish
- Russian
- Korean
- French
- Portugal
- Italian
- Hebrew

The Kit Includes
- OTDR
- FC/SC Connector
- User Manual,
- Touch Pen

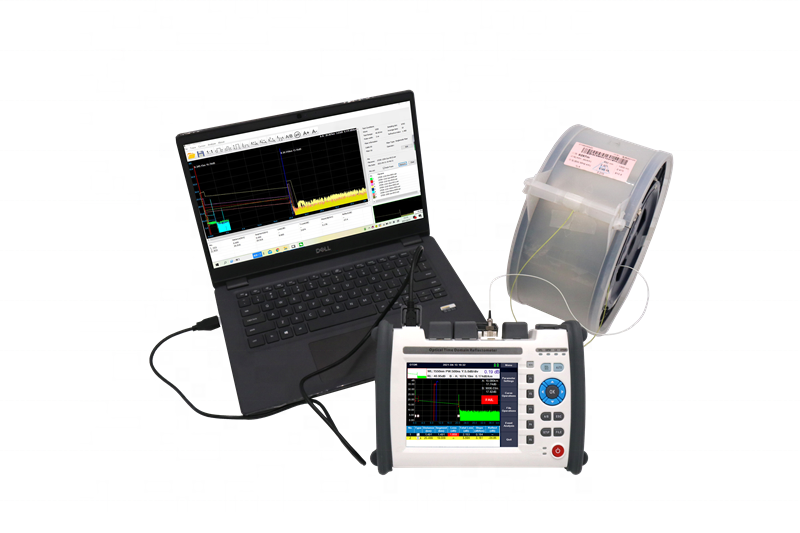

- OTDRviewer Software
- Power Charging Adapter,
- Carrying Bag
- Certificate of Calibrate

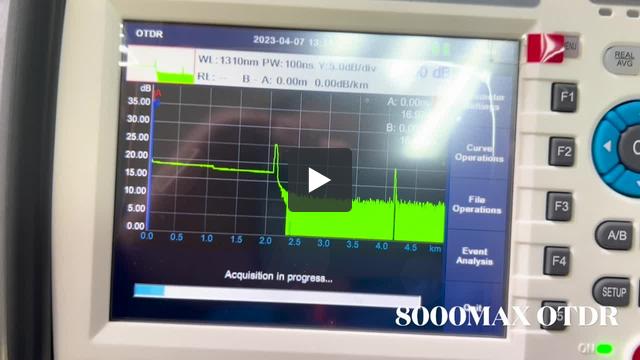

8000MAX OTDR Video Demo

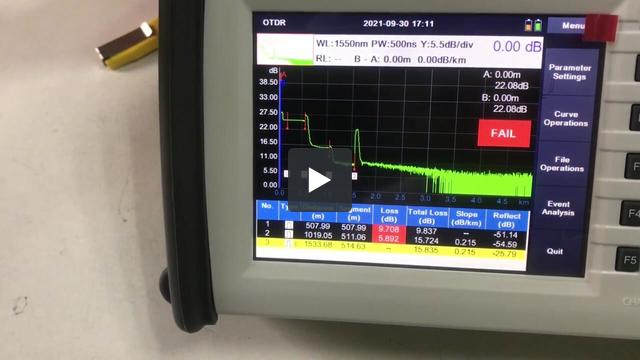

8000MAX OTDR Splitter Testing

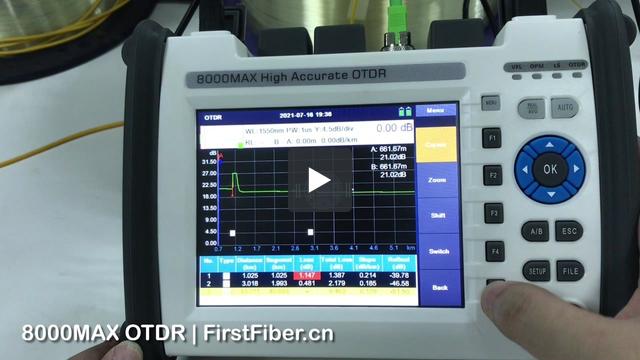

8000MAX OTDR Launch Cable Setting
